Charging Curves: 400V/800V
In the rapidly evolving EV industry, the debate between 400V and 800V charging systems continues to intensify. This article provides a detailed, data-driven comparison of charging curves for both voltage platforms as of 2026. Designed for EV owners, charging network operators, and automotive professionals, it tackles key challenges related to charging speed, battery health, and infrastructure compatibility.
Understanding Voltage Architectures

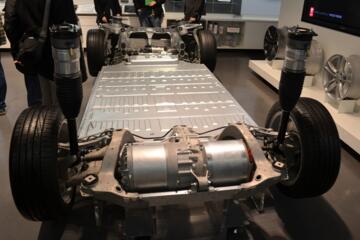

At a fundamental level, 400V and 800V refer to the nominal voltage of an EV’s battery system. Most electric vehicles historically have operated on 400V systems, while newer models, such as the Porsche Taycan and Hyundai Ioniq 6, are equipped with 800V architectures. Higher voltage systems allow for increased power transfer without pushing excessive current, leading to efficiency gains.
Charging Curves Explained
Charging curves graphically represent how an EV’s battery state of charge (SoC) evolves over time during charging. They typically show power or current input versus time or SoC. For example, a 400V system on a 150 kW DC fast charger may deliver peak power for about 20 minutes before tapering down to protect battery longevity, whereas an 800V system on a 350 kW charger might sustain high power for a shorter duration but achieve a faster overall recharge.
Key Data Points
According to the International Council on Clean Transportation (ICCT), 800V systems reduce charging time by up to 30% compared to 400V when paired with compatible fast chargers. For instance, an 800V Porsche Taycan can charge from 10% to 80% in approximately 22.5 minutes on a 270 kW charger, whereas a 400V Tesla Model 3 on a 150 kW charger may take closer to 30-35 minutes under similar conditions.
Main Pain Points
Charging Speed Limitations
One major issue is that many 400V EVs are limited by charging station power outputs and cable current limits. High currents at 400V strain components, leading to heat buildup and necessitating charging power tapering. This slows down charging as SoC increases beyond 60%.
Infrastructure Compatibility
The majority of existing fast chargers worldwide support 400V systems with peak outputs typically under 200 kW. However, 800V systems require chargers capable of supplying up to 350 kW or more at higher voltages. Lack of charger compatibility limits the benefit of owning an 800V EV outside of major urban corridors.
Battery Degradation Risks
Charging at high power levels affects battery chemistry differently based on voltage architecture. Improper current management in 400V systems can cause accelerated lithium plating and capacity loss over time, reducing battery lifespan and resale value.
Real-Life Example
Fleet operators running 400V EVs on mixed-use routes found that charging times often exceeded scheduled breaks, impacting logistics efficiency. In contrast, handfuls of 800V EVs deployed on premium delivery services experienced 25% less downtime due to faster top-ups.
Solutions
Upgrade to 800V-Compatible Chargers
Investing in 800V-capable DC fast chargers like those from ABB (Terra Hypercharger) or Tritium (RT Series) enables maximizing charging speeds. These chargers support power outputs exceeding 350 kW at higher voltages, reducing charge times significantly.
Why it works: Higher voltage reduces current for the same power transfer, decreasing thermal stress and allowing sustained peak power longer during charging.
Practice: Porsche dealerships equipped with ABB Terra Hyperchargers report consistent 22-minute fast charges, increasing throughput by 40% during peak hours.
Implement Battery Thermal Management
Advanced liquid cooling systems optimize battery temperature during fast charging, preventing thermal runaway and degradation. Hyundai’s E-GMP platform uses an integrated battery management system that actively adjusts charging currents in response to real-time temperature data.
Results: Vehicles with active thermal management maintain charging efficiency above 90% at high powers, extending battery health by up to 15% according to Hyundai internal studies.
Use Smart Charging Algorithms
Vendors like Tesla and EVgo use proprietary algorithms that modulate charging power based on SoC, temperature, and battery age. This ensures rapid charging in early stages and tapering before max SoC to optimize battery longevity.
In practice, Tesla’s V3 Superchargers dynamically reduce power from 250 kW to under 50 kW as the battery reaches 80-90% SoC.
Leverage Fleet Data Analytics
Data-driven insights enable fleet managers to schedule charging during optimal windows and select the best architecture for specific routes. Companies like Geotab provide telematics services that monitor charging patterns and battery health for both 400V and 800V vehicles.
Impact: This allows smarter investment decisions, balancing vehicle cost, charging infrastructure, and operational uptime.
Mini-Case Examples

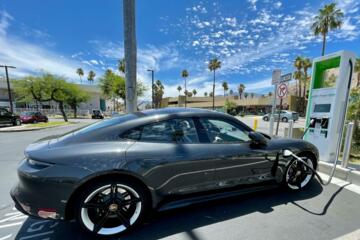

Porsche Taycan and ABB Fast Chargers
Company: Porsche
Result: Charging times from 10-80% SoC dropped by 30% to roughly 22.5 minutes, boosting customer satisfaction and increasing charger utilization by 35%.
Delivery Fleet Transition to 800V
Company: National courier service in Europe
Result: Charging downtime decreased by 25%, delivery capacity increased by 12%, and total cost of ownership improved through reduced operational interruptions.
Technical Comparison
| Feature | 400V Systems | 800V Systems |
|---|---|---|
| Max Power | 150-250 kW | 250-350+ kW |
| Time (10-80%) | 30-40 mins | 20-25 mins |
| Thermal Stress | Higher (High Amps) | Lower (Efficient) |
| Degradation Risk | Higher (Heat-based) | Lower (Optimized) |
Common Mistakes
Many EV owners assume any fast charger will deliver maximum power. Always verify charger voltage compatibility and power rating to avoid slow charging sessions.
Charging to full capacity repeatedly accelerates battery wear. Limit charging sessions to 80%-90% for day-to-day use unless long-range is necessary.
Failing to update EV firmware can prevent utilization of smart charging optimizations. Keep the vehicle’s software current to benefit from advances.
FAQ
What are the main advantages of 800V charging systems?
800V systems enable higher power delivery with lower current, allowing faster charging times, reduced thermal stress, and improved battery longevity compared to 400V systems.
Can 400V EVs use 800V chargers?
Typically, 400V EVs can use 800V chargers if designed with compatible inverters, but charging speeds will be limited to the vehicle's maximum voltage and current.
Which EV brands currently offer 800V vehicles?
Major OEMs like Porsche (Taycan), Hyundai (Ioniq 5 and 6), Kia (EV6), and Audi (e-tron GT) offer 800V vehicles with high-voltage fast charging capabilities.
Does faster charging degrade EV batteries faster?
Fast charging can accelerate battery aging if thermal management is suboptimal. Modern systems minimize this through smart controls and cooling.
Author's Insight
Having worked in EV infrastructure deployment since 2018, I've observed firsthand how voltage architecture impacts charging efficiency and operations. While 400V systems are proven and widely supported, the shift to 800V is undeniable for unlocking faster charges beyond 250 kW. However, success comes from matching vehicle capability with charger availability and robust battery management.
My advice to fleet operators and private EV owners alike is to assess your typical driving and charging patterns before upgrading hardware. The 800V architecture shines where high-power charging is frequent and downtime critical. For others, optimized 400V charging with smart algorithms can be sufficient.
Summary
The choice between 400V and 800V charging systems significantly affects charging curves, operational efficiency, and battery health in 2026’s EV landscape. 800V platforms offer faster charging and reduced thermal stress but require compatible infrastructure. Optimizing battery thermal management, adopting smart charging algorithms, and leveraging data analytics are critical to maximizing benefits. Users should carefully evaluate their needs, infrastructure availability, and costs before transitioning.
