High-Voltage Cables: Insulation Damage Guide

High-Voltage Integrity

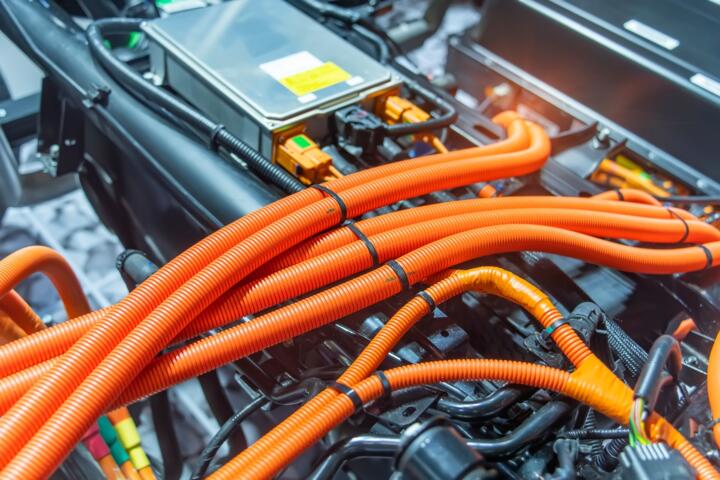

Modern electric vehicles (EVs) and plug-in hybrids (PHEVs) utilize high-voltage (HV) DC and AC systems operating anywhere from 400V to over 800V. The orange-jacketed high-voltage cables routing power between the battery pack, inverter, and electric drive motors require exceptional dielectric strength. Unlike low-voltage 12V chassis-grounded systems, the HV circuit is completely isolated from the vehicle structure, relying entirely on advanced multi-layer insulation to contain lethal currents.

According to field data from automotive forensic engineers, insulation degradation accounts for a significant percentage of unresolvable isolation faults (DTC P0AA6). A breach as small as a pinhole can allow moisture ingress, creating a conductive path to the chassis. Given that current levels during fast charging or hard acceleration can exceed 300 Amps, any compromise in insulation integrity poses immediate risks of thermal runaway, arc flashing, and catastrophic component failure.

Maintaining this isolation barrier is a continuous battle against environmental and operational stressors. Cable insulation typically consists of cross-linked polyethylene (XLPE) or silicone rubber, engineered to withstand high temperatures and voltage stresses. However, when these materials fail, the vehicle's Battery Management System (BMS) will trigger an immediate shutdown, stranding the motorist and requiring advanced diagnostic intervention.

Stressors and Failures

The automotive environment is uniquely hostile to high-voltage cabling. Technicians frequently misdiagnose insulation failure as a component fault because the damage is often hidden within conduit runs or behind aerodynamic underbody shielding. Mechanical wear is a primary culprit; continuous high-frequency chassis vibrations and subframe movement cause cables to rub against sharp metallic edges if routing clips loosen or are improperly installed during service.

Thermal degradation presents another severe challenge. Proximity to exhaust components in hybrid vehicles, or high ambient heat generated by internal resistance within the cable during sustained high-current delivery, cooks the insulation. This thermal aging accelerates polymer chain scission, turning flexible silicone brittle and prone to micro-cracking under normal road vibrations.

Chemical contamination completes the triad of destruction. Exposure to leaked petroleum fluids, brake fluid, or road salts acting as electrolytes can chemically attack the orange outer jacket. Once this protective barrier is compromised, moisture wicks along the internal shielding braid via capillary action, leading to localized galvanic corrosion and a rapid drop in isolation resistance ($R_{iso}$).

Advanced Diagnostics

Insulation Resistance Testing

Standard digital multimeters are entirely inadequate for testing high-voltage cable insulation because their 9V internal batteries cannot stress the dielectric material. Technicians must use a dedicated Megohmmeter (Megaohmmeter) capable of applying a test voltage that matches or exceeds the system operating voltage, typically 500V or 1000V DC, according to SAE J1766 standards.

To execute this test, the HV system must be completely de-energized, verified dead using a Category III or IV rated voltmeter, and the cable under test disconnected at both ends. Measure the resistance between the central copper conductor and the outer shielding braid or vehicle chassis; a healthy cable must yield a reading well above 500 Ohms per Volt, typically exceeding 100 Megohms in a pristine environment.

Milliohm Shield Continuity

The braided copper or aluminum shield directly beneath the orange outer jacket serves a dual purpose: electromagnetic interference (EMI) suppression and safety fault pathing. If insulation damage allows the inner conductor to short to the shield, the shield must safely carry that current to trigger the vehicle's fuse or pyrofuse. Testing this requires a low-resistance milliohm meter using a four-wire Kelvin probe configuration.

Measure the resistance from one end of the cable shield to the other, ensuring it meets the manufacturer’s precise specification (usually less than 20 milliohms). A high resistance value indicates internal shield corrosion or breakage caused by mechanical crimping, which severely degrades the cable's ability to safely ground an internal insulation fault.

Time-Domain Reflectometry

When a cable run is routed through inaccessible areas, such as inside a sealed battery pack casing or structural tunnel, physical inspection is impossible without hours of teardown. Time-Domain Reflectometry (TDR) solves this by sending a low-voltage high-frequency electrical pulse down the cable. Any discontinuity, break, or insulation crush alters the characteristic impedance, reflecting a portion of the pulse back to the source.

By analyzing the time delay and waveform shape of the reflected signal, diagnostic software can pinpoint the exact location of the insulation damage within centimeters. This precision allows technicians to target their repair efforts, saving hours of labor and preventing the unnecessary replacement of undamaged sections of the high-voltage wiring harness.

Visual and Tactile Profiling

Despite advanced electronic testing, a meticulous physical inspection remains irreplaceable. Technicians should look for localized discoloration of the orange jacket, which indicates localized overheating or hot-spots. Feel the cable along its entire length for flat spots, swelling, or internal stiffness, which often points to internal conductor strand breakage or chemical swelling of the inner polymer layers.

Pay close attention to bend radiuses. Manufacturers specify strict minimum bend radiuses for high-voltage cables to prevent the internal conductors from migrating through the insulation over time due to mechanical tension. Any bend that appears sharper than a 90-degree angle or exceeds specified limits must be corrected immediately to prevent long-term stress fatigue.

Ultrasonic Fault Detection

Before a total dielectric breakdown occurs, micro-arcs or partial discharges can happen inside compromised insulation, especially under high AC frequencies found between the inverter and the motor. These micro-events emit high-frequency ultrasonic acoustic waves that are completely imperceptible to the human ear but easily detected by specialized ultrasonic microphones.

Scanning the cable routing while the vehicle is operating under load on a chassis dynamometer allows real-time detection of these early-stage insulation breakdowns. This predictive maintenance step catches issues before they trigger a hard isolation fault codes or system shutdowns on the road.

Diagnostic Case Study

A high-performance EV fleet vehicle presented with intermittent "Isolation Fault" warnings that only occurred during heavy rain. The local dealership replaced the onboard charger, assuming internal moisture ingress, but the code returned within 48 hours. The vehicle was transferred to an advanced diagnostic center for systematic high-voltage insulation profiling.

Technicians isolated the main DC-to-DC converter feed lines and performed a 1000V insulation test using a Fluke 1587 FC meter. The baseline dry test showed a healthy 250 Megohms. However, when executing a wet-simulation spray test along the underbody routing, the isolation resistance dropped rapidly to 0.12 Megohms, far below the FMVSS 305 safety limit.

Further inspection revealed that a plastic underbody clip had broken, allowing the high-voltage cable to rub against a stabilization bar. The constant friction had worn away 1.5 millimeters of the orange silicone jacket and the shielding mesh, exposing the inner primary insulation. Replacing the targeted cable run and installing upgraded heavy-duty mounting brackets completely resolved the issue, preventing a potential $8,000 components replacement error.

Cable Diagnostic Metrics

Common Workshop Pitfalls

The most dangerous pitfall in high-voltage cable repair is attempting to patch compromised insulation using standard vinyl electrical tape or heat-shrink tubing. High-voltage automotive cables are subjected to extreme environmental conditions that standard workshop consumables cannot handle. Patching creates a localized moisture trap and fails to restore the mandatory EMI shielding layer, leading to immediate system faults or vehicle fires.

Another frequent error is the improper routing of cables after a major powertrain repair. Technicians often zip-tie high-voltage lines tightly to existing low-voltage harnesses or structural components. This creates concentrated pinch points that crush the insulation over time under normal chassis flex, transforming a minor installation oversight into a major warranty failure within months.

Finally, skipping the verification of test equipment leads to false positives. Always check your Megohmmeter leads for internal resistance and verify the calibration date before testing. A damaged test lead can mimic an open circuit, masking a severe, potentially lethal ground fault in the high-voltage system you are evaluating.

FAQ

Can HV cables be spliced?

As a rule, OEMs strictly prohibit splicing or repairing high-voltage cables within the vehicle chassis run due to the risk of moisture ingress and shielding disruption. Damaged cables must be replaced as a complete assembly from connector to connector to ensure original engineering safety parameters are preserved.

What does orange mean?

The orange color is an international standard safety convention designating high-voltage wiring operating above 60V DC or 30V AC. It alerts emergency first responders and automotive technicians to exercise extreme caution and follow specific de-energization protocols before touching the components.

How do I test safety?

Safety is verified via an isolation measurement using a specialized insulation tester. Before any physical handling, you must verify the system is de-energized using the "live-dead-live" testing method with a properly rated Category III or IV digital multimeter on known live and dead sources.

Why does silicone crack?

Silicone insulation cracks primarily due to continuous thermal stress combined with ozone exposure and mechanical flexing. When operating at high currents near its temperature limit, the polymer chains break down, causing the material to lose its elasticity and fracture under normal vehicle vibration.

What is an isolation code?

An isolation fault code means the vehicle's onboard diagnostic system has detected a leakage current between the high-voltage isolated circuit and the low-voltage chassis ground. The vehicle will usually disable the high-voltage contactors to prevent electric shock hazards to occupants.

Author's Insight

Throughout my years working on advanced electric drivetrains, I have learned that shortcuts with high-voltage insulation always end in disaster. I once traced a phantom isolation fault for three days only to find a microscopic prick mark left by an untrained technician using a piercing probe—a tool that should never be allowed near an EV. Treat the orange jacket with absolute respect; even a scuff mark warrants a full insulation test. Investing in high-quality diagnostic equipment like a true four-wire milliohm meter will save you countless hours of diagnostic frustration and keep your workshop safe.

Summary

Managing high-voltage cable insulation requires a combination of strict safety compliance, advanced diagnostic tools, and precise physical inspection techniques. Technicians must shift away from outdated low-voltage habits and embrace insulation resistance testing, shield continuity checks, and time-domain reflectometry to accurately isolate faults. By executing these procedures systematically, you can accurately identify underlying insulation damage before it manifests as an on-road failure, ensuring the long-term reliability and safety of the vehicle's electrical propulsion system.
